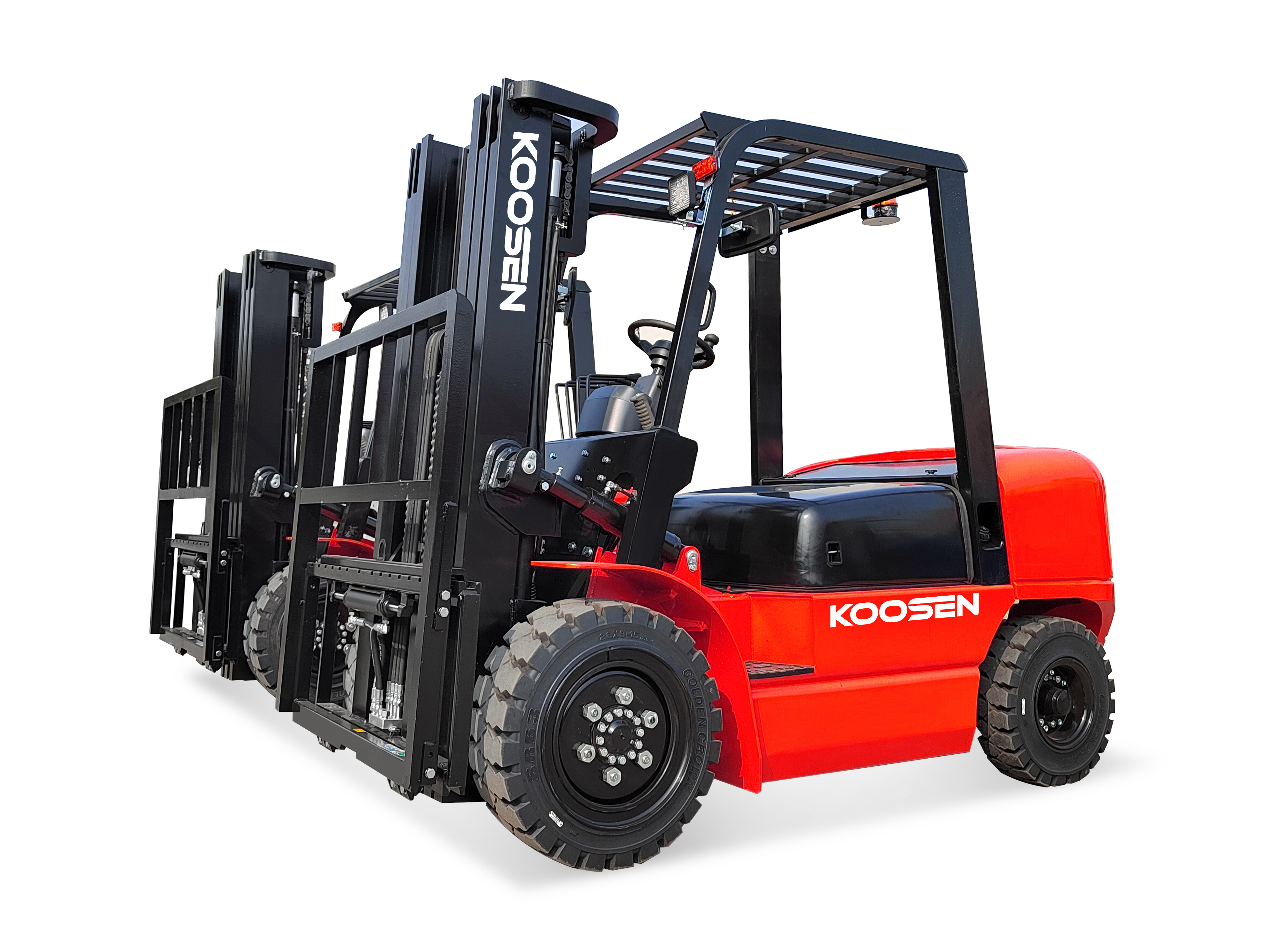

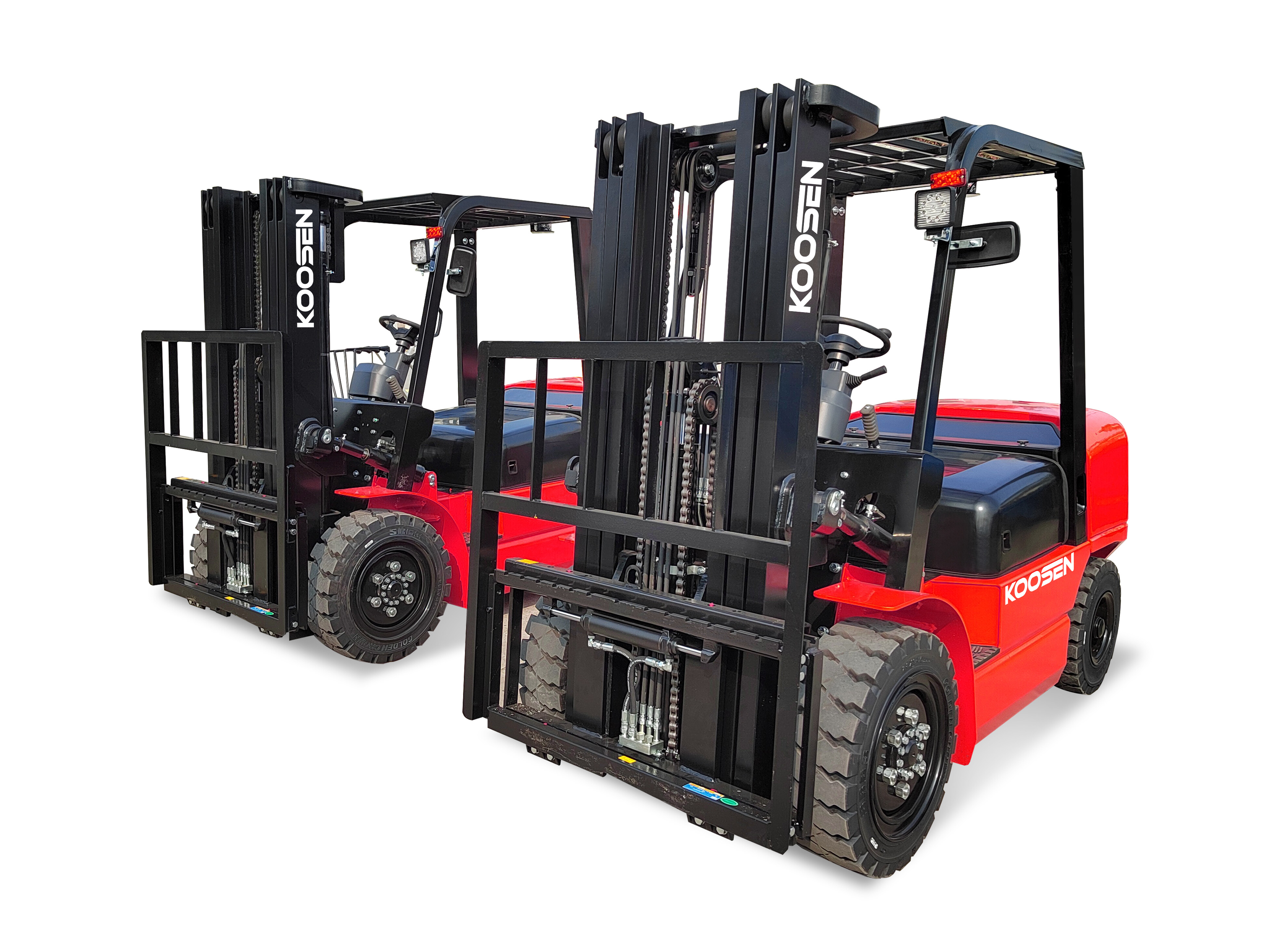

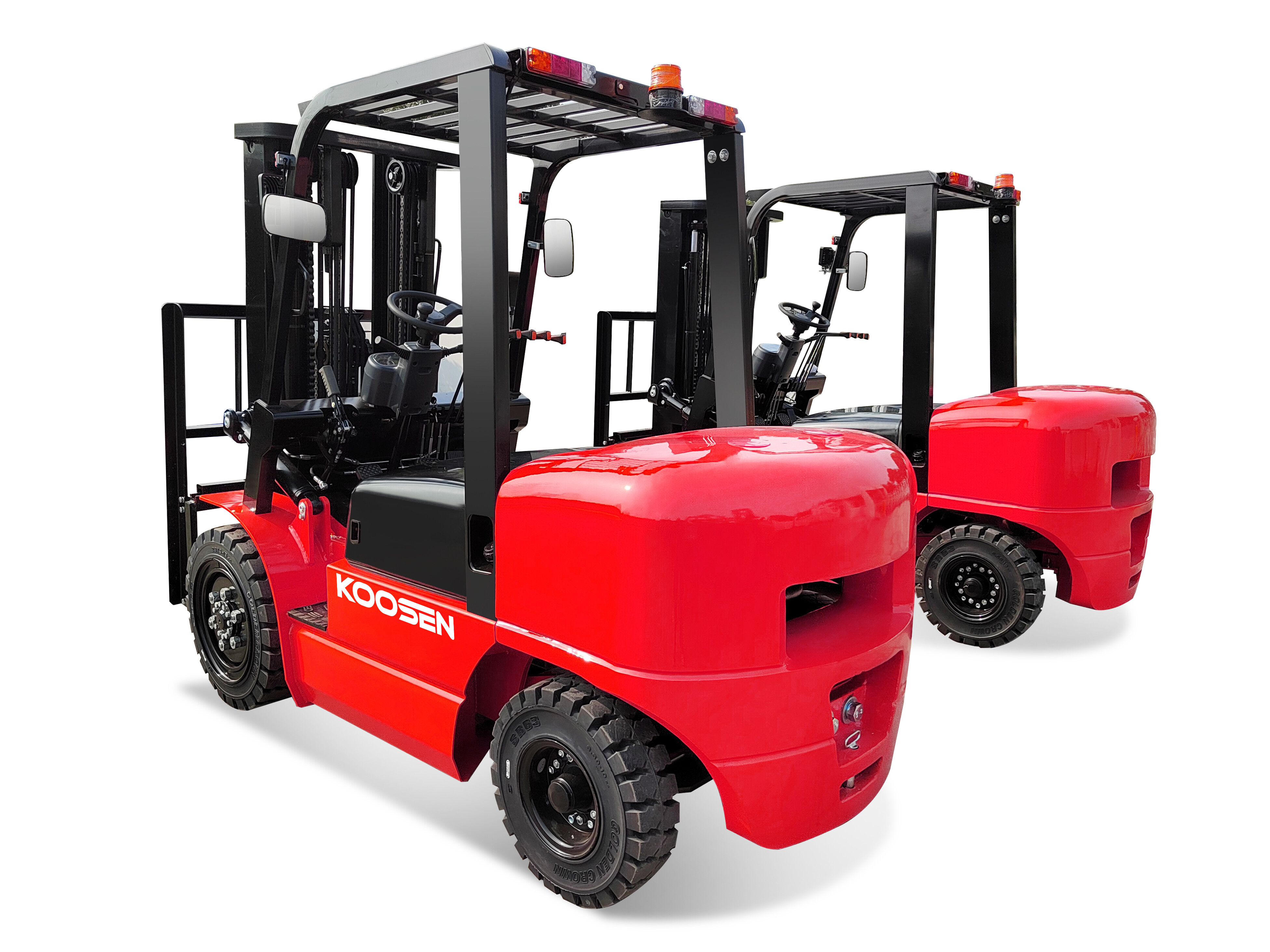

Diesel Counter Balance Forklift

If you have any questions, please feel free to contact us.

Send mail

Ask for a quote

Share to：

PRODUCT INTRODUCTION

Under the request of our dealers, Koosen combines the experience of the forklifts industry in China and the latest forklift technologies globally to present to our partners the Koosen environmental-friendly lC forklifts range with excellent safety, reliability, ergonomics & comfort and easy maintenance. Koosen lC forklifts adopt the mast system of Q series electric forklifts range for easy exchange, easier service and less parts inventory. Selected top brand components in the industry make sure the best reliability and performance of the trucks.

Specification

Model					CPCD15 automatic Shift	CPCD18 automatic Shift	CPC15 Manual Shift	CPC18 Manual Shift
1	Features	Powe type			Diesel	Diesel	Diesel	Diesel
2		Rated load		kg	1500	1800	1500	1800
3		Load center distance		mm	500	500	500	500
4		Lift height		mm	3000	3000	3000	3000
5		Free lift height		mm	120	120	120	120
6		Fork size	L×W×T	mm	920×100×35	920×100×35	920×100×35	920×100×35
7		Mast tilt angle	FR/RR	。	6/12	6/12	6/12	6/12
8		Minimum turning radius		mm	1955	1985	1955	1985
9		Minimum right angle stacking aisle width		mm	3365	3395	3365	3395
10		Minimum right angle aisle width		mm	2155	2185	2155	2185
11		Minimum ground clearance	Frame center(no load)	mm	115	115	115	115
12		Minimum ground clearance	Mast Bottom（no load）	mm	110	110	110	110
13		Height of overhead guard		mm	2060	2060	2060	2060
14		Overhang (FR)		mm	410	410	410	410
15	Performance	Maximum travel speed	Full load	km/h	15	15	15	15
15		Maximum travel speed	No load	km/h	15	15	15	15
16		Maximum lift speed	Full load	mm/s	470	470	470	470
16		Maximum lift speed	No load	mm/s	530	530	530	530
17		Maximum drawbar pull	Full load	KN	14	19	14	19
18		Maximum gradeability		%	20	20	20	20
19	Dimensions	Overall length	Without forks	mm	2235	2270	2235	2270
20		Overall width		mm	1080	1080	1080	1080
21		Mast height at maximum lift (with backrest)		mm	3930	3930	3930	3930
22		Mast lowered height		mm	2010	2010	2010	2010
23	Chassis	Tires	Front wheel		6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
24		Tires	Rear wheel		5.00-8-10PR	5.00-8-10PR	5.00-8-10PR	5.00-8-10PR
25		Wheelbase		mm	1400	1400	1400	1400
26		Tread	Front wheel/rear wheel	mm	891/920	891/920	891/920	891/920
27		Self weight	Without load	Kg	2790	2890	2790	2890
28	Drive	Battery	Voltage/capacity	V/Ah	12/80	12/80	12/80	12/80
29		Engine	Model		全柴V25-45V42 Quanchai	全柴V25-45V42 Quanchai	全柴V25-45V42 Quanchai	全柴V25-45V42 Quanchai
30			Rated output	kw/r.p.m	33.1/2600	33.1/2600	33.1/2600	33.1/2600
31			Rated torque	Nm/r.p.m	145/1800-2000	145/1800-2000	145/1800-2000	145/1800-2000
32			Bore x stroke	mm	90×100	90×100	90×100	90×100
33			Number of cylinders		4	4	4	4
34			Displacement	L	2.54	2.54	2.54	2.54
35		Fuel tank capacity		L	49	49	49	49
36		Transmissions (FWD/RWD)			1/1手动换档 manual shift	1/1手动换档 manual shift	2/2手动换档 manual shift	2/2手动换档 manual shift
37		Operating pressure		Mpa	15.5	15.5	15.5	15.5
38	Supplement	Tire type (FR/RR)			Pneumatic	Pneumatic	Pneumatic	Pneumatic
39		Number of wheels (FR/RR)		只	2/2	2/2	2/2	2/2
40		Lowering speed (full load)		mm/s	430	430	430	430
41		Lowering speed (no load)		mm/s	450	450	450	450
42		Axle load distribution (full load) (FR/RR)		kg	3861/429	4221/469	3861/429	4221/469
43		Axle load distribution (no load) (FR/RR)		kg	1116/1674	1156/1734	1116/1674	1156/1734
