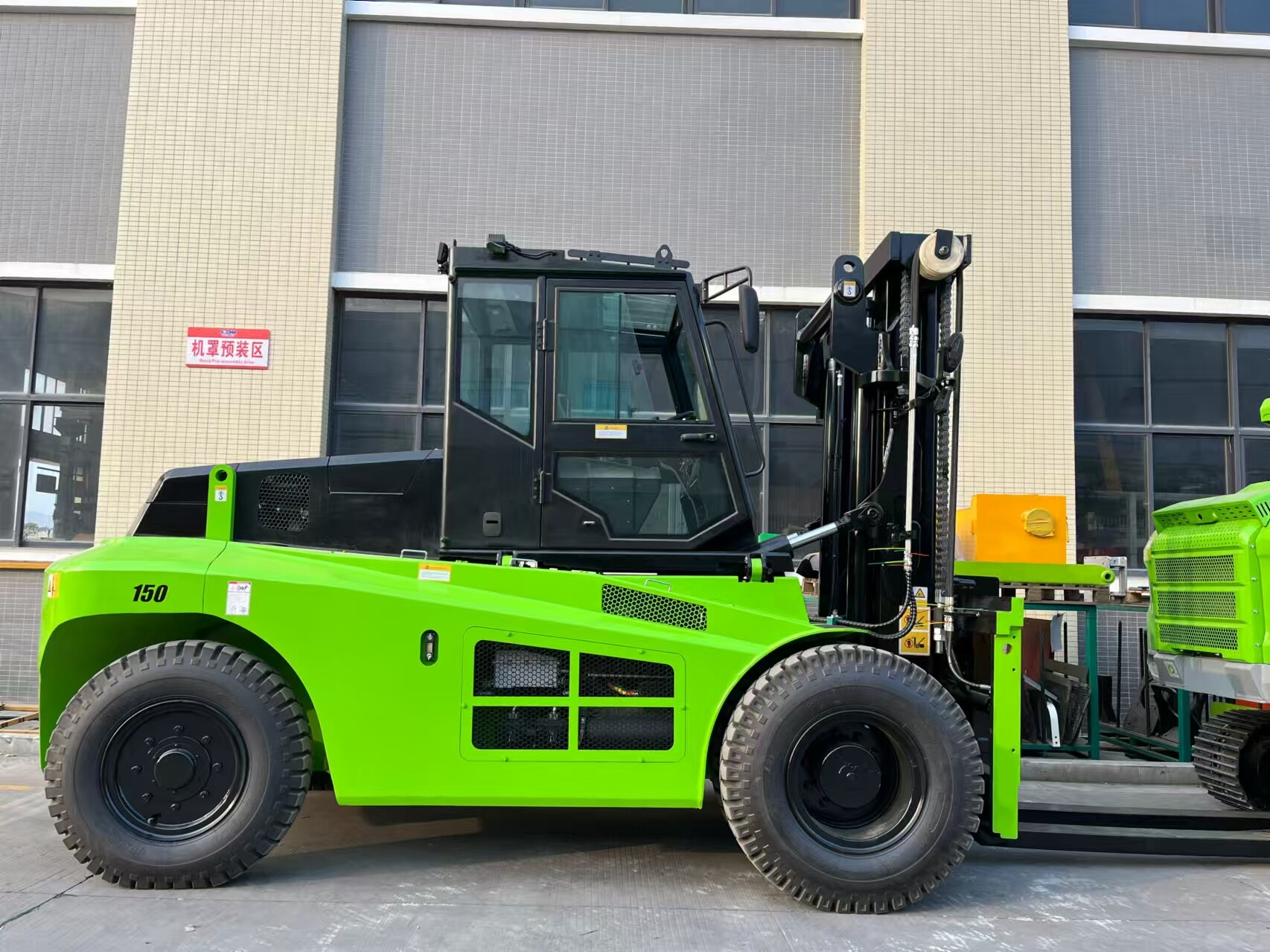

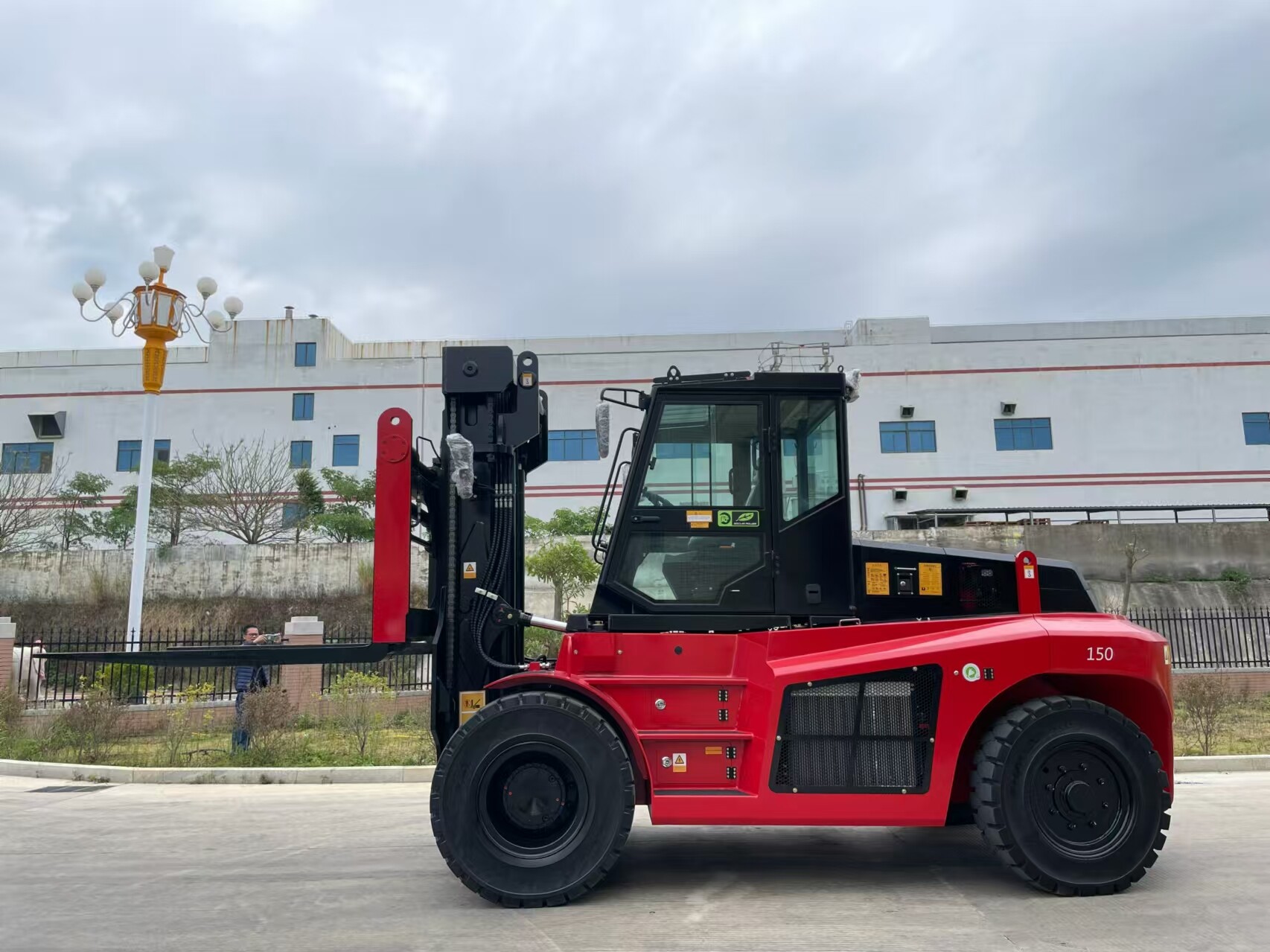

15Ton Lithium-Battery Operated Forklift

If you have any questions, please feel free to contact us.

Ask for a quote

Share to:

PRODUCT INTRODUCTION


FeatureNameUnitParameter
ManufacturerBrand
Koosen
Model
CPD-150EL
CharacteristicsPower Type
(Lithium   battery) Electric
Rated Load(kg)15,000
Load Center Distance(mm)600
Wheelbase(mm)3,300
WeightSelf-weight(kg)19,500 ± 500
Wheels/ChassisTire   Specification: Front
12.00-20-16PR
Tire Specification: Rear
11.00-20-16PR
Number of Wheels Front/Rear (x=driven)
42
Front Wheel Track(mm)1,677
Rear Wheel Track(mm)2,013
Basic DimensionsMast Tilt Angle   (Front/Rear)(°)612
Mast Height When Retracted(mm)3,120
Standard Lifting Height(mm)3,000
Free Lifting Height(mm)-
Maximum Height During Operation(mm)4,620
Overhead Guard Height (Optional Cab Height)(mm)3,000
Overall Length (Including Fork Length)(mm)6,055
Fork Vertical Face to Rear of Vehicle(mm)4,855
Overall Width(mm)2,250
Fork Size(mm)1,200×180×90
Fork Frame Width(mm)2,250
Minimum Ground Clearance at Mast (Loaded)(mm)225
Minimum Ground Clearance at Wheelbase Center (Loaded)(mm)350
Minimum Turning Radius(mm)5,500
Functional SpecsTravel Speed   (Loaded/Unloaded)(km/h)16/20
Maximum Lifting Speed (Loaded/Unloaded)(mm/s)220/270
Maximum Lowering Speed (Loaded/Unloaded)(mm/s)340/320
Traction Force(kN)54
Gradeability (Loaded/Unloaded)(%)15/20
Service Brake
Hydraulic
Parking Brake
Spring-loaded   Disc Brake
Battery SpecsBattery Type
Lithium Iron   Phosphate
Battery Cooling Method
Air   Cooling/Liquid Cooling
Rated Storage Energy(kWh)145
Rated Capacity(Ah)1,300
Nominal Voltage(V)112
Full Charge-Discharge Cycles(times)3,500
Theoretical Service Life(years)8-10
Charging Time(h)3
Power Consumption(kWh/h)16-22   (Condition-dependent)
Drive MotorMotor Type
AC Motor
Rated Power(kW)90
Transmission Type
Direct Drive
Hydraulic SystemMotor Type
AC Motor
Rated Power(kW)74
System Pressure(MPa)20
Steering Type
Full Hydraulic   Steering
Steering Pressure(MPa)14
Steering Method
Transverse   Cylinder Steering
OthersOperation Method
Mechanical Lever
Cab Type
Seated
Air Conditioning
Heating/Cooling   (Optional)
Low Voltage Battery Voltage(V)24
Low Voltage Battery Capacity(Ah)36
Instrument Panel
CAN   Communication Panel
Reverse Camera
Optional
LED Headlights and Work Lights
Available
Laser Projection(pcs)3 (Optional)
Charging Pile (Dual Gun)(kW)48 (Optional)
Onboard Tools (Includes Fire Extinguisher)
Attached   List
