Order Picker

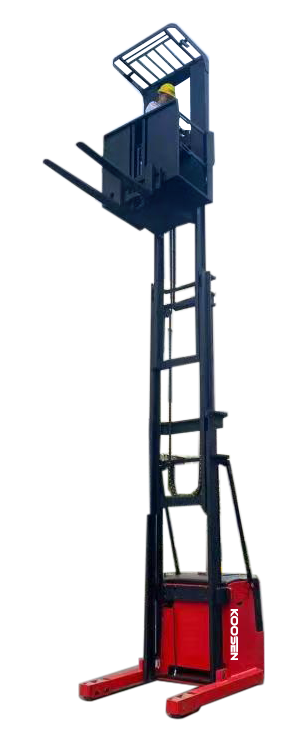

High Level Electric Order Picker

If you have any questions, please feel free to contact us.

Ask for a quote

Share to:

PRODUCT INTRODUCTION


ModelCXD10-45CXD10-60CXD10-70
Load capacity(Kg)100010001000
Load center  mm450450450
PowerFull   electricFull   electricFull   electric
Working StyleStanding/Man   UpStanding/Man   UpStanding/Man   Up
Total weight Kg220023802580
Driving wheel  mmφ230×90φ230×90φ230×90
Front wheel   mmφ150×90φ150×90φ150×90
Assistance Wheel  mmφ130×55φ130×55φ130×55
Lifting height  mm450060007000
Overall length  mm283028302830
Overall width  mm115511551280
Overall height(Closed) mm219026903030
Overall height(Open)mm675082509250
Top Guard Height mm225022502250
Ground clearance mm303030
Fork length mm920*100*35920*100*35920*100*35
Fork Width mm685685685
Turn radius mm165016501650
Aisle Size mm320032003200
Speed km/h4/54/54/5
Gradeability %000
BrakeElectromagneticElectromagneticElectromagnetic
Driving motor24V/1   .5KW24V/1   .5KW24V/1   .5KW
Lifting motor24V/3KW24V/3KW24V/3KW
Battery  V/Ah24/28024/28024/300
ChargerV/Ah24V/40A24V/40A24V/40A
Lifting speed mm/s110110110
Down speed mm/s125125125

ABOUT US

SUZHOU KOOSEN TECHNOLOGY CO.,LTD

Koosen is a Professional company focus on R&D and Manufacturing of Aerial working platform, Materials Handling equipment which include Scissor lift, Vertical lift, Aerial Stock picker, articulating boom lift, Telescopic boom lift, Electric Forklift, Electric Pallet Truck, Electric Pallet Stacker, Electric Towing Tugger and various customized lift, forklift, Electric Pallet truck, electric Golf car.
Starting Aerial Working Platform and Materials Handling equipment businesses in 2014, we had accumulated rich experience and a strong R&D team to offer the most popular Aerial working platform for both domestic and international market, we already sold our Scissor lift, Forklift, Pallet Truck to more than 50 different country, Such As, Russia, Poland, America, Brazil, Argentina, Chile, Turkey, France, UK, Germany, South Africa, Thailand, Vietnam, Malaysia and so on.
As a experienced company in material handling equipment, we have a lot of customers all around the world. Our products has been sold to over 60 countries and markets and share a good reputation.
Our mission is to provide high quality tools with perfact service, then make the material handling become easy and efficient.
