Order Picker

Driveable Telescopic Order Picker

If you have any questions, please feel free to contact us.

Ask for a quote

Share to:

PRODUCT INTRODUCTION


MODELAMWP3.6-3000AMWP4.8-3000AMWP6.0-3000
Max. Working Height5.6m6.8m8.0m
Max. Platform Height3.6m4.8m6.0m
Loading Capacity230kg230kg160kg
Ext. Platform Capacity114kg114kg114kg
Overall Length1.36m1.36m1.36m
Overall Width0.76m0.76m0.76m
Overall Height1.7m1.98m1.98m
Platform Dimension1.3m   x 0.70m1.3m   X 0.70m1.3m   X 0.70m
Ext. Platform Length0.51m0.51m0.51m
Wheel Base1.04m1.04m1.04m
Inner Turning Radius0m0m0m
Outer Turning Radius1.4m1.4m1.4m
)Travel Speed(Stowed)4km/h4km/h4km/h
Travel Speed(Raised)l.lkm/hl.lkm/hl.lkm/h
Up/Down Speed31/32sec41.5/42sec50/61sec
Gradeability25%25%25%
Drive Tyres305X100mm305X100mm305X100mm
Drive Motors2X24VDC/0.5kW2X24VDC/0.5kW2X24VDC/0.5kW
Lifting Motor24VDC/1.3kW24VDC/1.3kW24VDC/1.3kW
Battery2X12V/100Ah2X12V/100Ah2X12V/100Ah
Charger24V/15A24V/15A24V/15A
Weight810kg980kg1070kg

ABOUT US

SUZHOU KOOSEN TECHNOLOGY CO.,LTD

Koosen is a Professional company focus on R&D and Manufacturing of Aerial working platform, Materials Handling equipment which include Scissor lift, Vertical lift, Aerial Stock picker, articulating boom lift, Telescopic boom lift, Electric Forklift, Electric Pallet Truck, Electric Pallet Stacker, Electric Towing Tugger and various customized lift, forklift, Electric Pallet truck, electric Golf car.
Starting Aerial Working Platform and Materials Handling equipment businesses in 2014, we had accumulated rich experience and a strong R&D team to offer the most popular Aerial working platform for both domestic and international market, we already sold our Scissor lift, Forklift, Pallet Truck to more than 50 different country, Such As, Russia, Poland, America, Brazil, Argentina, Chile, Turkey, France, UK, Germany, South Africa, Thailand, Vietnam, Malaysia and so on.
As a experienced company in material handling equipment, we have a lot of customers all around the world. Our products has been sold to over 60 countries and markets and share a good reputation.
Our mission is to provide high quality tools with perfact service, then make the material handling become easy and efficient.

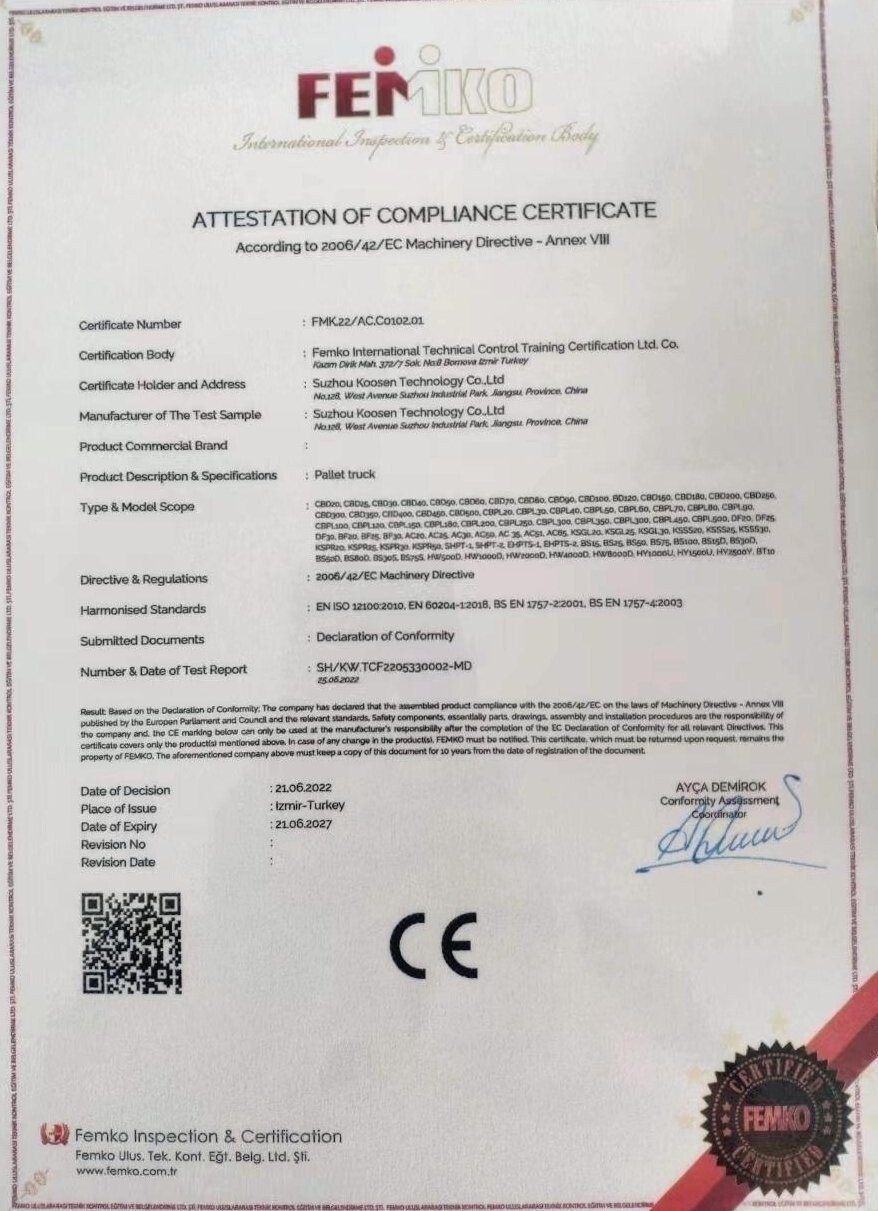

  • CE-Certificate-for-pallet-truck.jpg

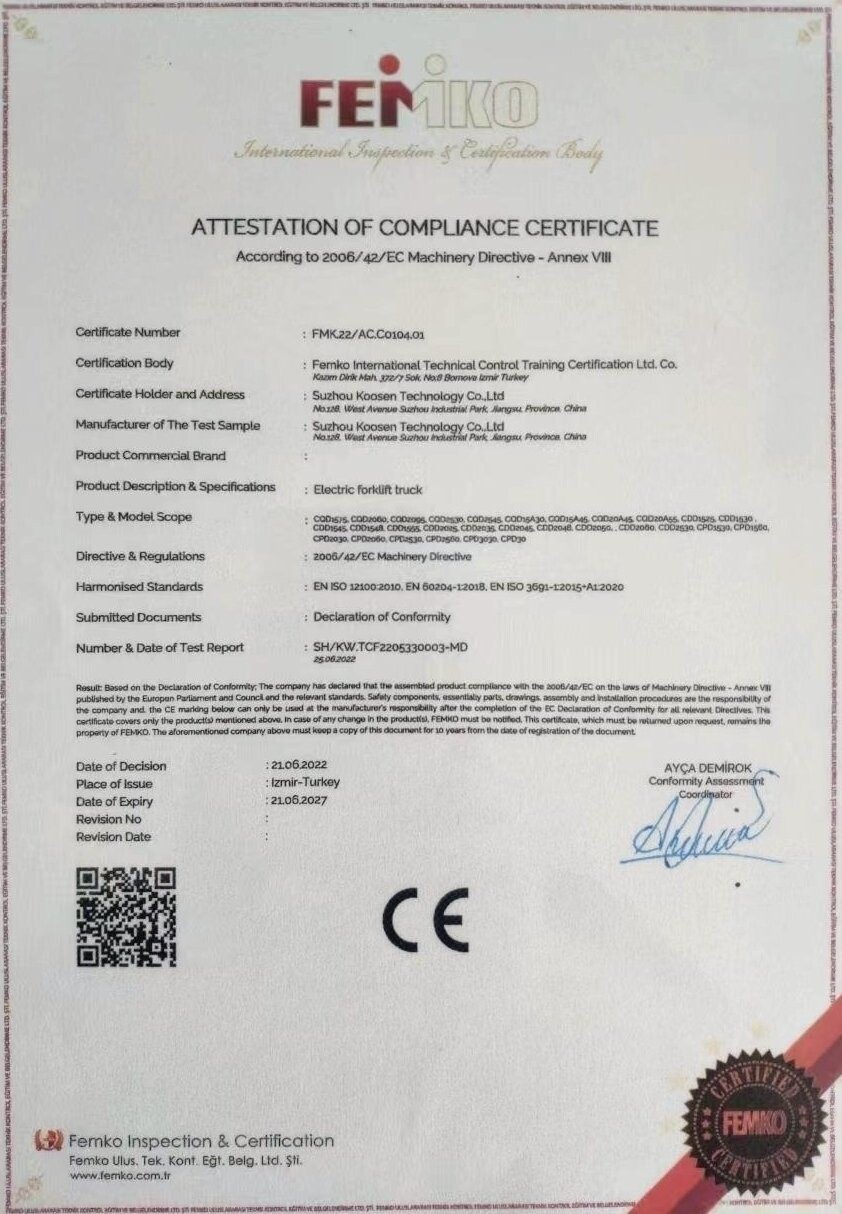

  • CE-Certificate-for-Forklift.jpg

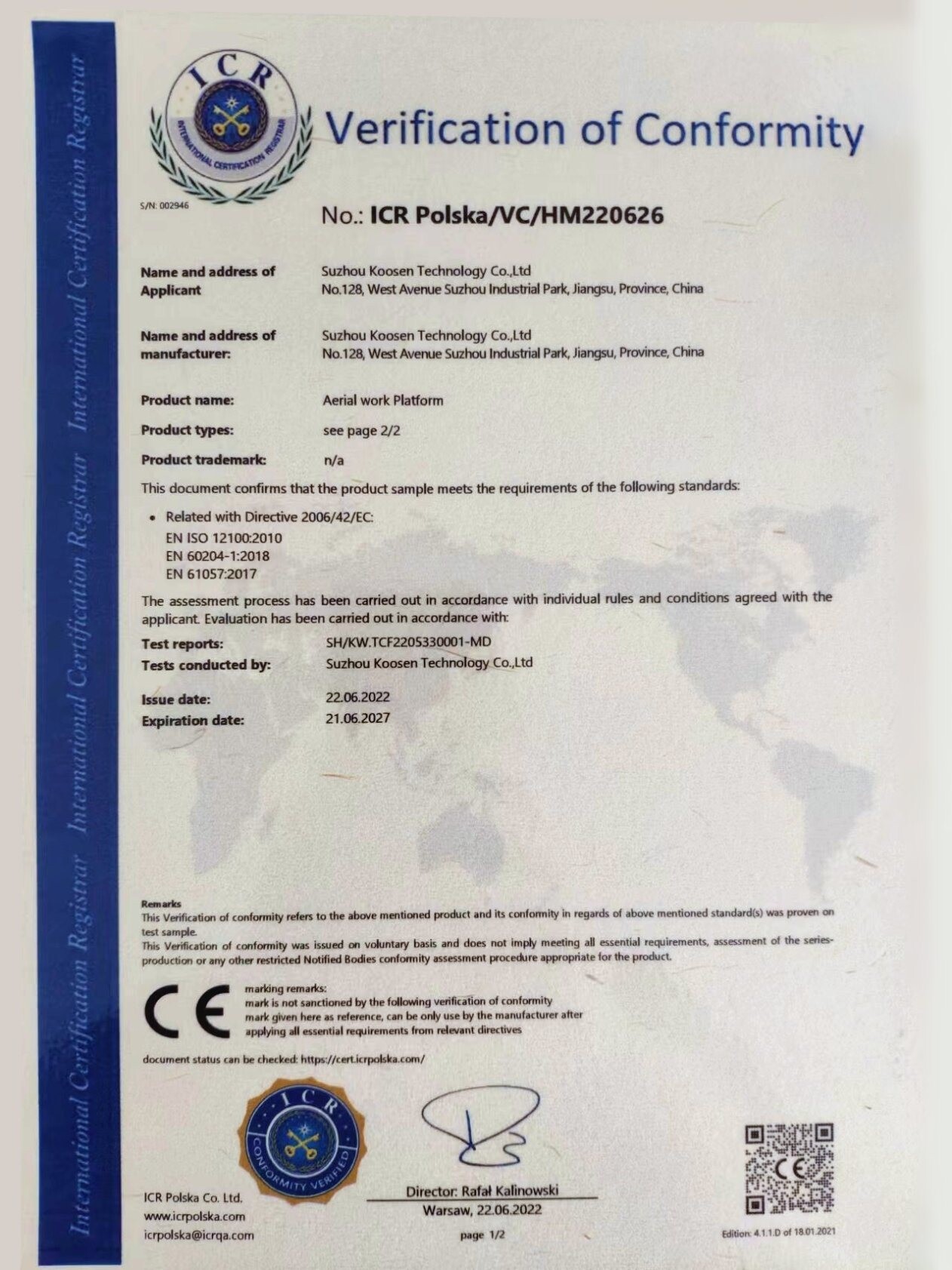

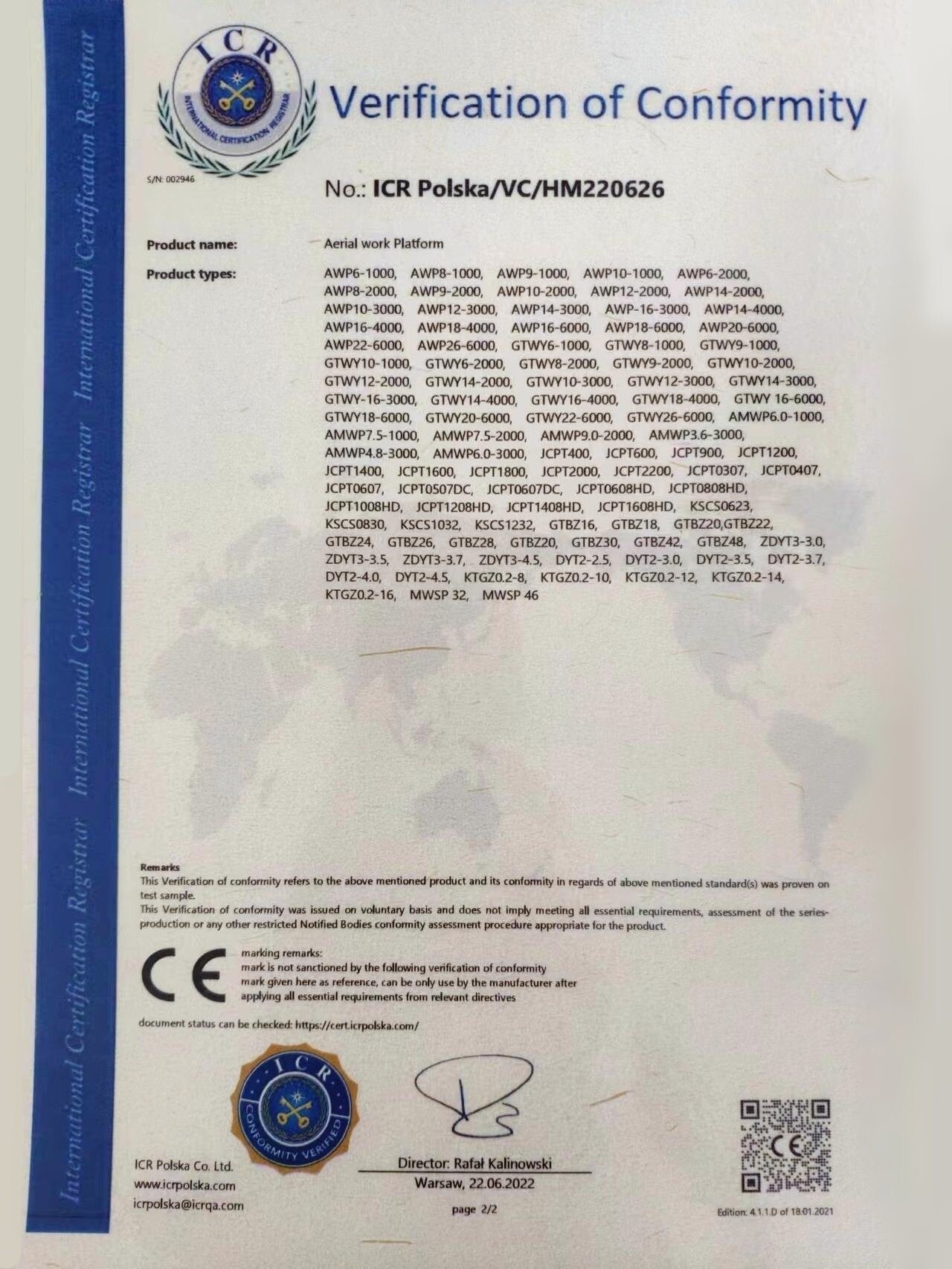

  • CE-Certificate-for-Aerial-working-platform.jpg
  • CE-Certificate-for-Aerial-working-lift.jpg

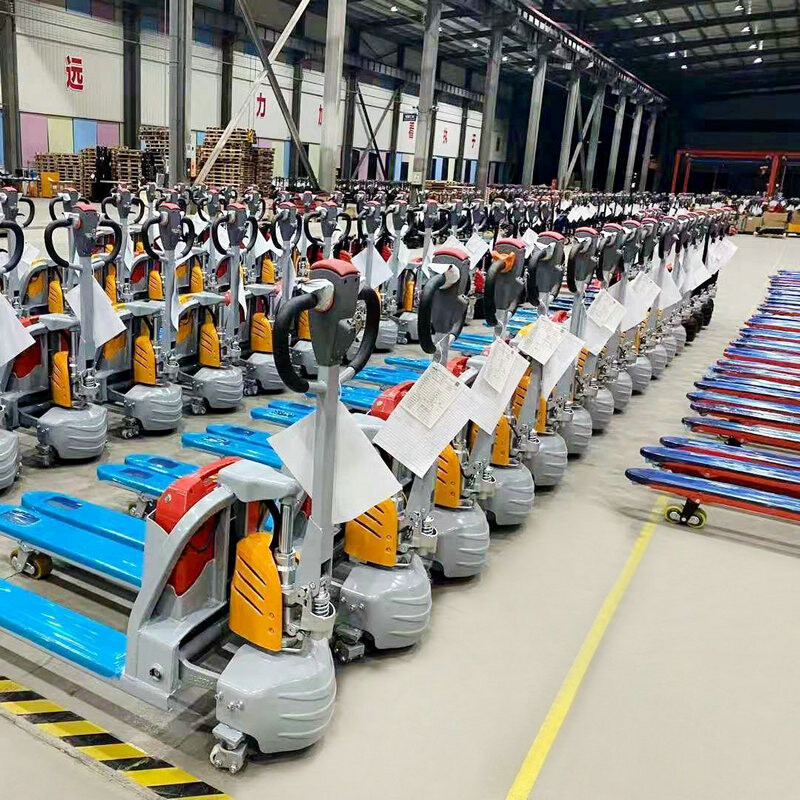

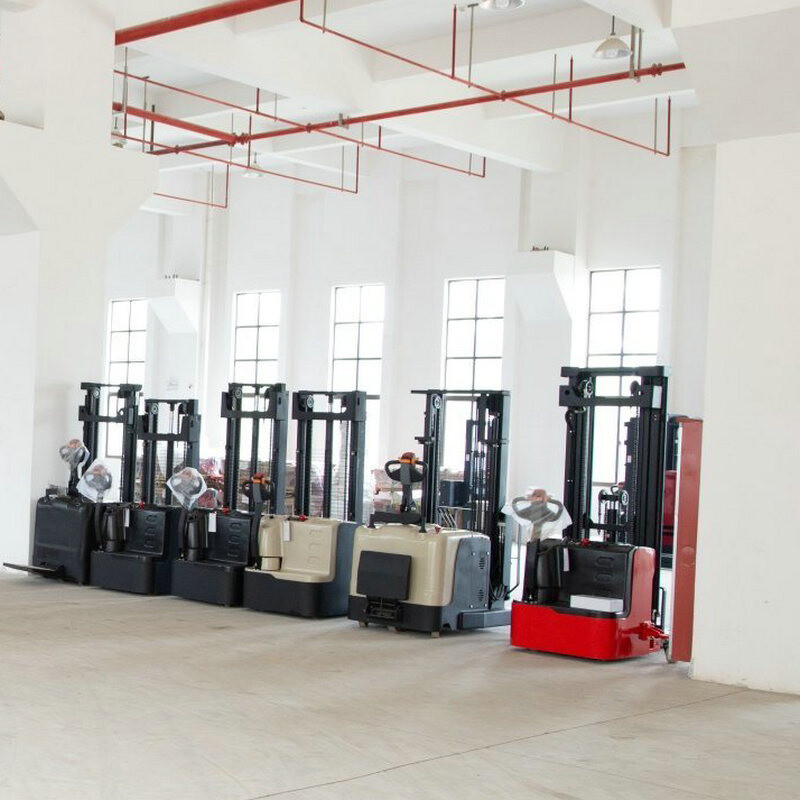

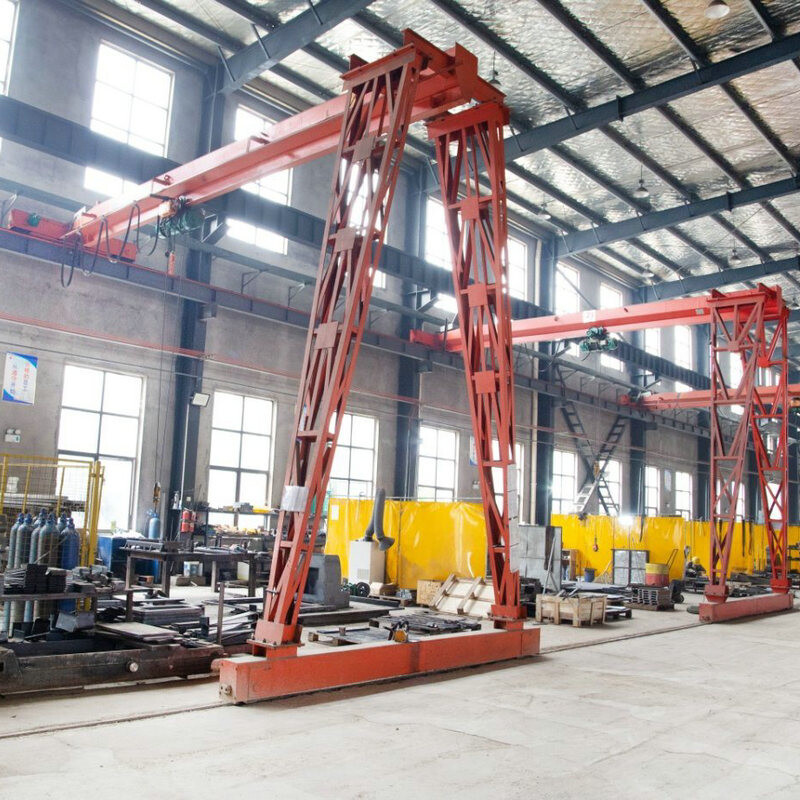

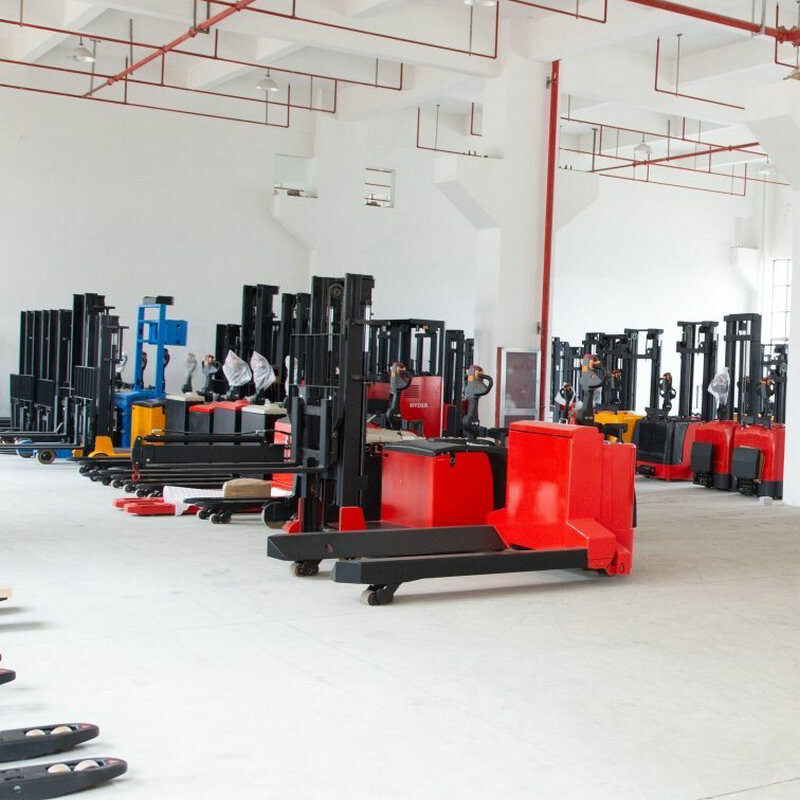

WORKSHOP
