VNA Forklift

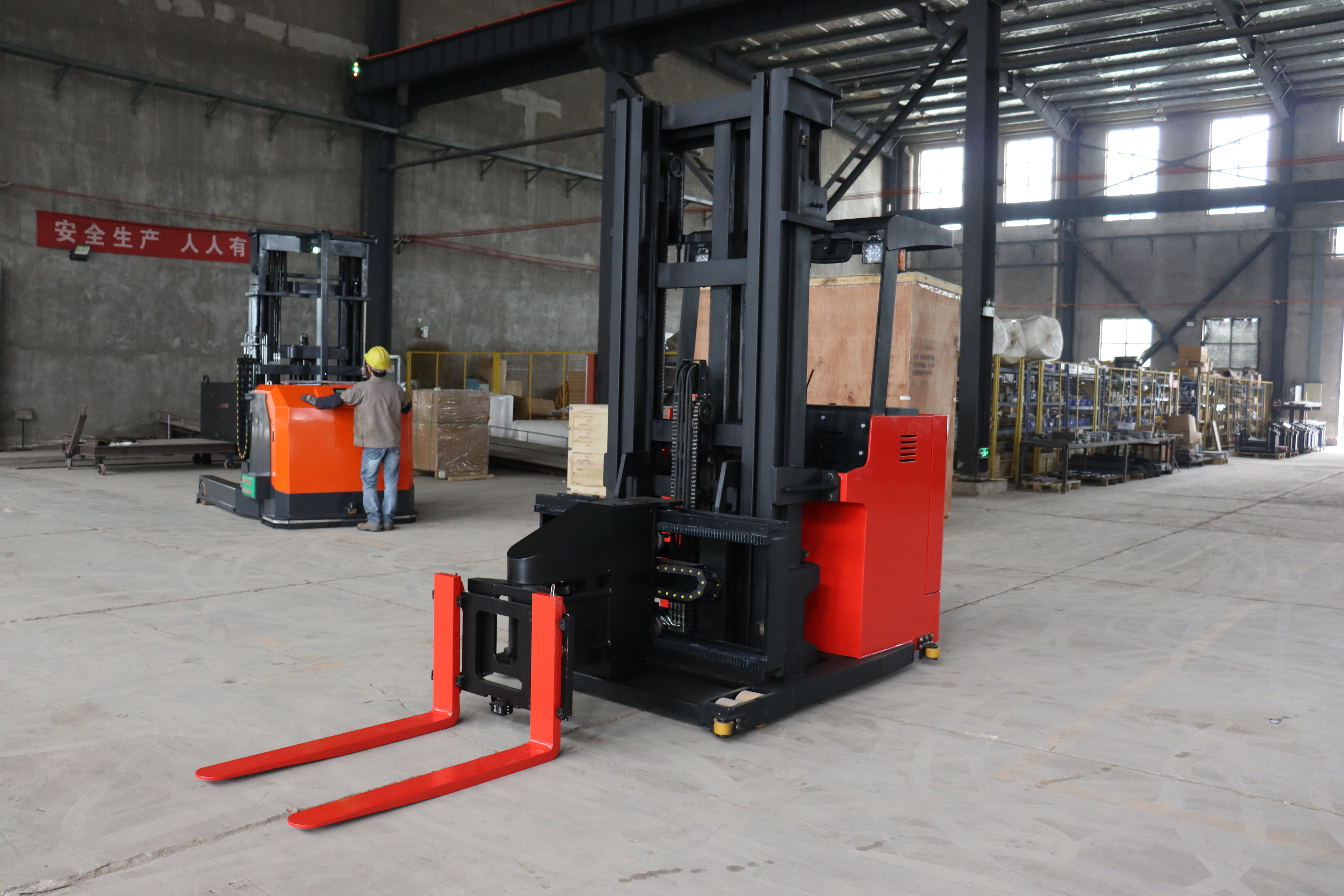

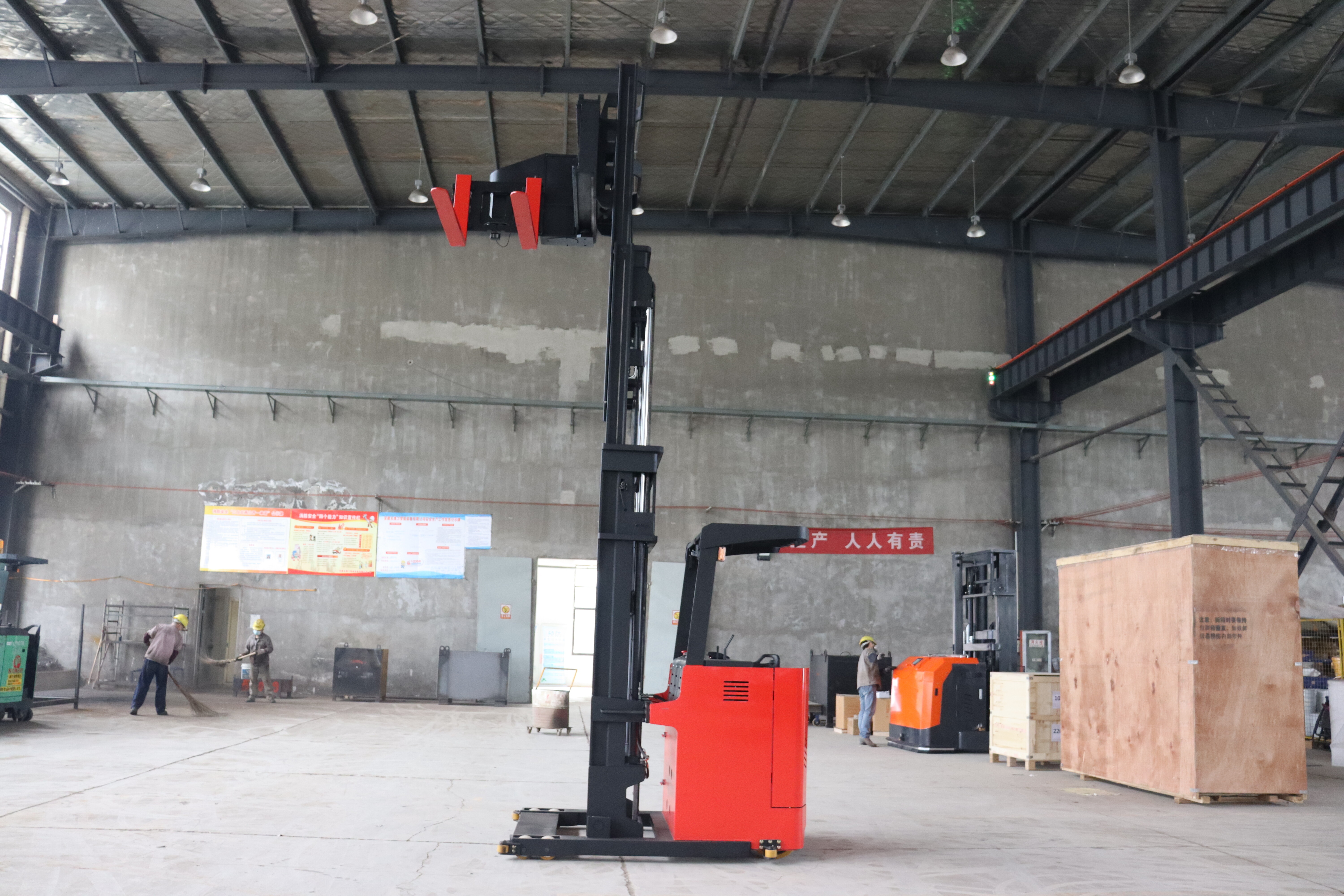

3-way Electric Reach Truck

If you have any questions, please feel free to contact us.

Ask for a quote

Share to:

PRODUCT INTRODUCTION


The VNA Truck Series with 1000kg, 1500kg Loading Capacity, is the perfect choice if you are looking for a compact, Narrow Aisle electric pallet stacker. It is helpful to use it in High End warehouse.



● Wide View Mast, Hight Strength Shock absorb
● USA Curtis Controller
● Mini 1480mm Aisle size, Special for VNA
● EPS, easy to operating
● Shimadzu Lower noise Hydraulic Pump and Valve
● Multi-Function Meter, Wheel Indicated Meter
● Electromagnetic、regenerative brake
● 180 degress of Forks Rotate, side Shift
● Electric Line  fault detector
● Automatic guide and Revise system to make the Forklift working by straight Line
● 48V big capacity Battery


Safety


● Automatic Speed Reduction Device for Curves
● Controller Multiple Protection System
● Induction type seat
● Emergency Reverse collision avoidance/Brake system
● Cylinder Safety Shut-off Valve
● Speedless Drive Motor
● Automatic Speed Reduction Device for lifting in high position



Specification



Model
CSD 10CSD 10SQCSD15CSD15SQ
Power Model
BatteryBatteryBatteryBattery
Drive Model
SittingStitting

Loading Capacitykg1000100015001500
Loading Centermm500500500500
Size
Overall Length(Platform  Fold/unfold)mm2892289230003000
Overall Widthmm1450145015501550
Fork Sizemm1070/100/351070/100/351070/125/501070/125/50
Outside Fork Distancemm230-760230-760400-780400-780
Mini Ground Clearancemm40404040
Wheelbasemm1605160517001700
Wheel Types,Drive/Load
PUPUPUPU
Wheel Size,LoadingmmΦ140*100Φ140*100Φ140*127Φ140*127
Wheel Size,DrivingmmΦ343*135Φ343*135Φ343*135Φ343*135
Fork Installing TypesmmII  BII  BII  BII  B
Wheel Number  F/R(X=Drive)
4/1X4/1X4/1X4/1X
Wheeltread,Loadingmm1210121012801280
Wheeltread,Drivingmm684684

Lifting Heightmm3000300030003000
Seat Heightmm1070107010701070
Mini Ground Clearance of Mastmm40404040
Closed Mast Heightmm2570450025704500
Lifted Mast Heightmm4060545040405555
Free Lift Heightmm0178001745
Mast Mode




Front overhangmm655655655655
Fork Tilt Angle




Forward Distancemm



Top Guard Heightmm2240224022602260
Performance
Aisle Width for Pallet 1000*1200 Fork along side 1200mm1480148015801580
Aisle Width for Pallet 800*1200 Fork along side 1200   Pmm



Turing Radius   Platform unfold/foldmm1750175018501850
Driving Speed, Loaded/Unloadedkm/h8.0/9.08.0/9.07.5/8.07.5/8.0
Lifting Speed, Loaded/Unloadedmm/s180/315180/315180/315180/315
Lowering Speed, Loaded/Unloadedmm/s160/300160/350160/300160/350
Max Climbling Capacity, Loaded/Unloaded(S2-5 min%8/106/88/106/8
Brake Model

Electromagnetism
Steering Model
EPSEPSEPSEPS
Battery Exchange mode
Side DrawSide DrawSide DrawSide Draw
Power
Driving Motor(S2-5Min)kw4.5 AC6.5 AC5.5 AC5.5 AC
Lifting Motor(S2-5Min)kw6.3 DC6.3 DC8.6 AC8.6 AC
BatteryV/AH48/40048/40048/42048/420
ChargerV/A48/35A48/35A48/35A48/35A
Weight
Batterykg675675740740
Overall Truck(Includes Battery)kg4760527046505640
