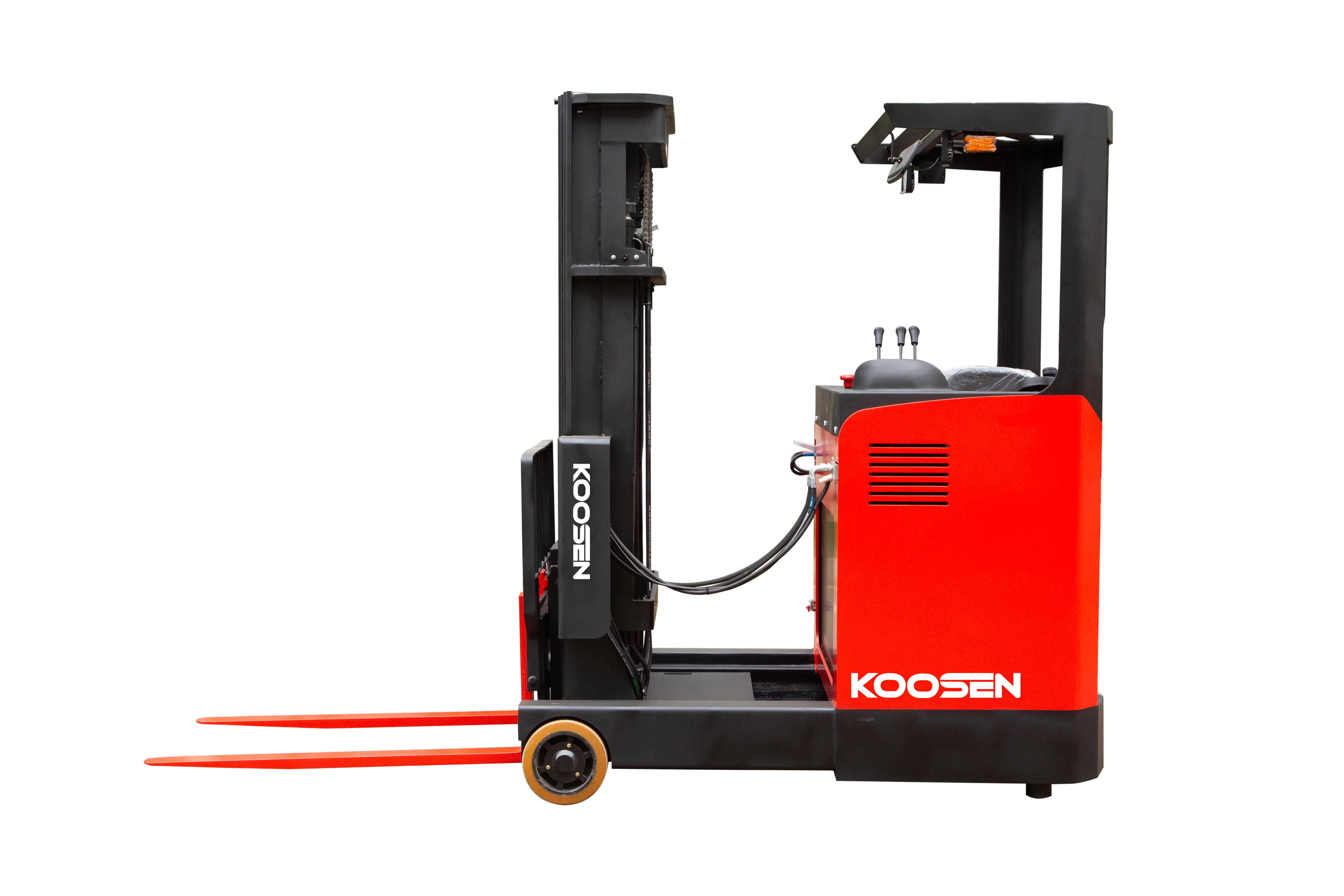

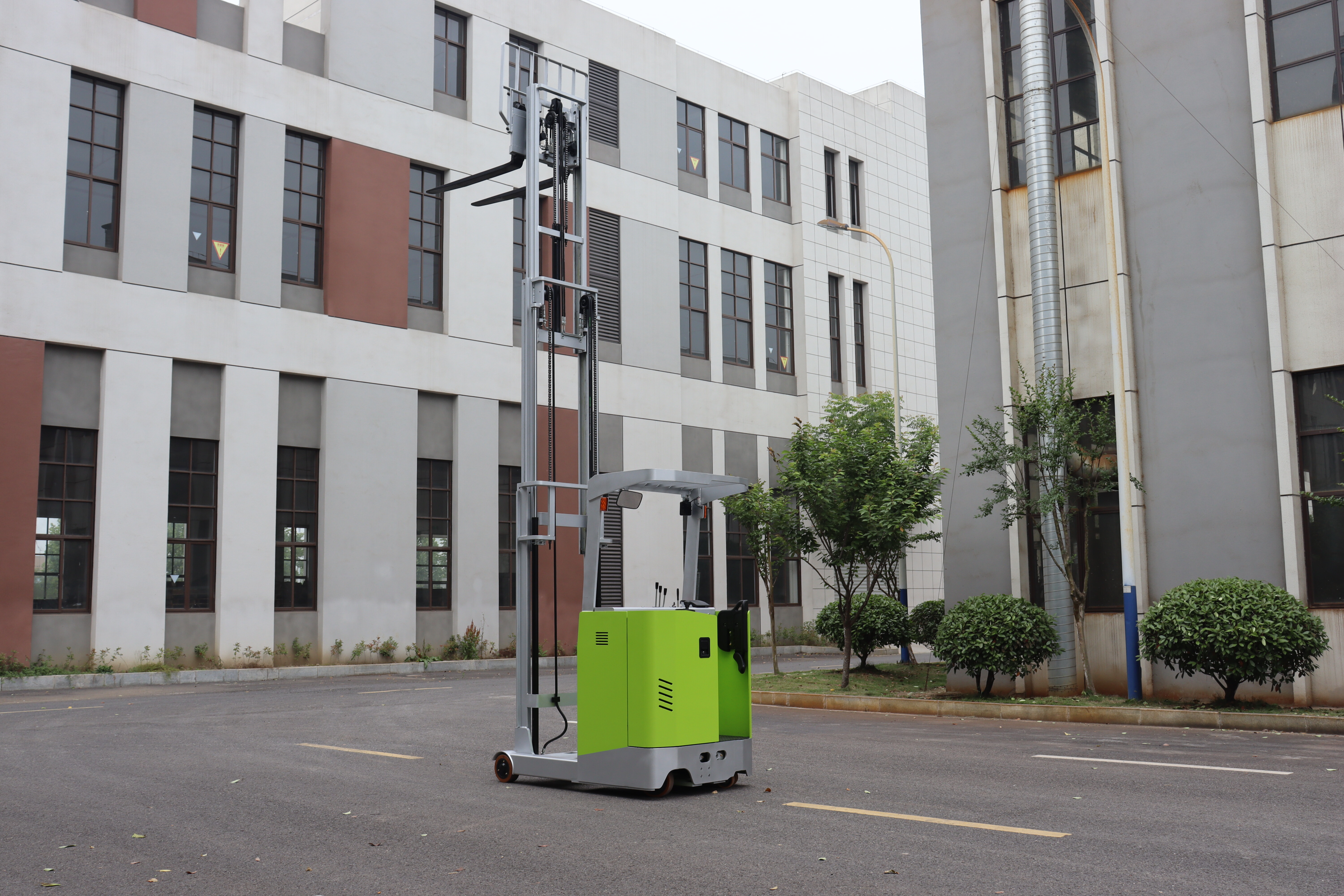

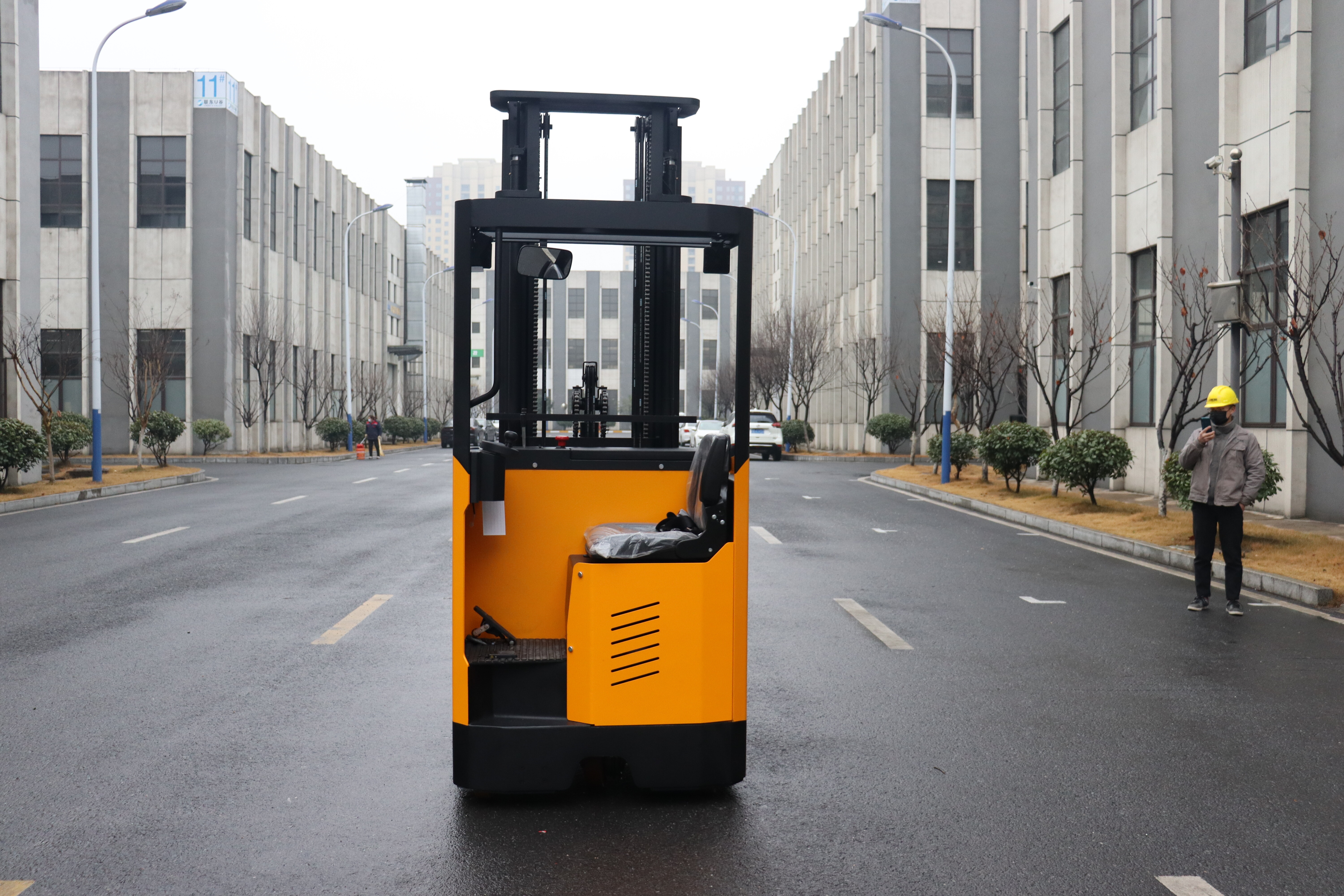

Electric Reach Truck

Sitting Reach Truck

If you have any questions, please feel free to contact us.

Ask for a quote

Share to:

PRODUCT INTRODUCTION


Electric Reach Stacker CQD Series with 1600,2000,2500kg Loading Capacity ,Lifting Height from 3 meter to 12 meter, It is Popular use in Light Duty Warehouse, export to Southeast Asia, Middle East Market.





Feature


Standard
● Wide View Mast, Hight Strength Shock absorb
● USA Curtis Controller
● Zhongnan Transimission Box
● EPS, easy to operating
● Shimadzu Lower noise Hydraulic Pump and Valve
● Drive speed compensation, short & open Circuit Protection
● Electromagnetic、regenerative brake
● High, lower voltage limited, over heating Protection for electronic
● electric Line  fault detector
● 48V big capacity Battery

Safety
● Automatic Speed Reduction Device for Curves
● Controller Multiple Protection System
● Emergency Reverse collision avoidance/Brake system
● Cylinder Safety Shut-off Valve
● Speedless Drive Motor
● Automatic Speed Reduction Device for lifting in high position



Specification




Model
CQD 16CQD 25
Power Model
BatteryBattery
Drive Model
SittingSitting
Loading Capacitykg16002500
Loading Centermm600600
Size


Overall Length(Platform  Fold/unfold)mm24402500
Overall Widthmm12701270
Fork Sizemm1070/100/351070/122/40
Outside Fork Distancemm210-800210-800
Mini Ground Clearancemm8080
Wheelbasemm14951665
Wheel Types,Drive/Load
Solid PUSolid PU
Wheel Size,LoadingmmΦ267*114Φ267*114
Wheel Size,DrivingmmΦ343*135Φ343*135
Balance Wheel SizemmΦ130*55Φ130*55
Wheel Number  F/R(X=Drive)
2/1X2/1X
Wheeltread,Loadingmm1158/01158/0
Wheeltread,Drivingmm684684
Lifting Heightmm75003000
Platform Heightmm195195
Mini Ground Clearance of Forkmm110110
Closed Mast Heightmm31503250
Lifted Mast Heightmm84858485
 Free Lift Heightmm25852585
 Mast Mode
Triplex MastDuplex Mast
Front overhangmm160160
Fork Tilt Angle
3月5日3月5日
Forward Distancemm550650
Top Guard Heightmm21902190
Leg Heightmm310310
First  Footboard Heightmm320320
Second  Footboard Heightmm530530
Seat Heightmm975975
Height between Second footboard and Top Guardmm16151615
Performance


Aisle Width for Pallet 1000*1200mm27452975
 Fork along side 1200   Platform unfold/fold
Aisle Width for Pallet 800*1200mm2785/23702785/2370
 Fork along side 1200   Platform unfold/fold
Turing Radius   Platform unfold/foldmm17751945
Driving Speed, Loaded/Unloadedkm/h7.5/8.07.5/8.0
Lifting Speed, Loaded/Unloadedmm/s150/260150/260
Lowering Speed, Loaded/Unloadedmm/s160/300160/350
Max Climbling Capacity, Loaded/Unloaded(S2-5 min)%8月10日6月8日
Brake Model
ElectromagnetismElectromagnetism
Steering Model
EPSEPS
Battery Exchange mode
Hoisting(Optional for Side Draw)Hoisting(Optional for Side Draw)
Power


Driving Motor(S2-5Min)kw4.56.5
Lifting Motor(S2-5Min)kw6.38.6
BatteryV/AH48/40048/420
ChargerV/A48/35A48/35A
Weight


Batterykg650700
Overall Truck(Includes Battery)kg35003950
