Forklift

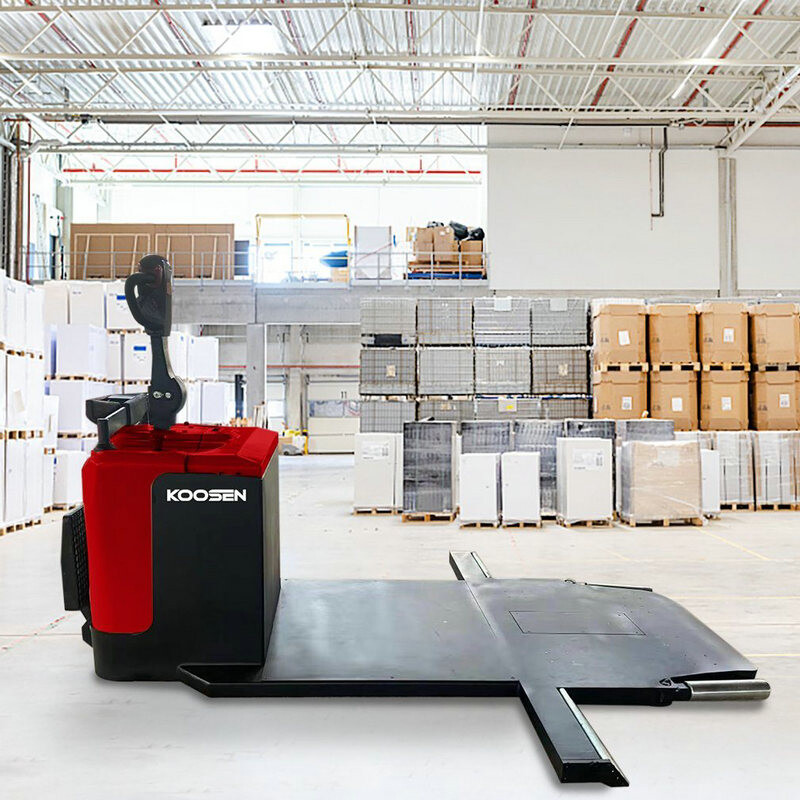

Full Electric Self Lifting Stacker 1500kg

If you have any questions, please feel free to contact us.

Ask for a quote

Share to:

PRODUCT INTRODUCTION


Type of   Power

Li-Ion Battery
Max.   LoadQkg1500
Load CenterCmm400
WheelbaseL0mm924
Wheel Distance: FRW1mm405/525
Wheel Distance: RRW2mm802
Type of Operation

Walk
Front Wheel
mm2-φ80×70/2-φ80×60
Universal Wheel
mmΦ75×45
Middle Wheel
mmΦ45×30
Driving wheel
mmΦ185×70
Middle Wheel PositionL4mm158
Length of OutriggersL3mm780
Max. Fork HeightHmm800/900/1000/1100/1200/1300/1500/1600
External Distance Between ForksW3mm565/685
Length of ForkL2mm1250
Thickness of ForkB1mm80
Width of ForkB2mm190
Overall LengthL1mm1657
Overall WidthWmm802
Overall Height (Mast Closed)H1mm1163/1263/1363/1463/1563/1663/1863/1963
Overall Height (Max. Fork Height)H1mm1861/2061/2261/2461/2661/2861/3261/3461
Lifting speed
mm/s55
Descent speed
mm/s100
Lift Motor Power
kw2
Driving Motor Power
kw0.8
Max. speed(Turtle speed / full-load)
km/h1/3.5
Grade Ability(Full-load/NO-load)
%5/10
Battery Voltage
V48
Battery Capacity
Ahstandard(15)optional(30)
Battery Weight
kg6/10/10
Total Weight(Include   Battery)
kg370/374/380/383/386/390/400/405

ABOUT US

SUZHOU KOOSEN TECHNOLOGY CO.,LTD

Koosen is a Professional company focus on R&D and Manufacturing of Aerial working platform, Materials Handling equipment which include Scissor lift, Vertical lift, Aerial Stock picker, articulating boom lift, Telescopic boom lift, Electric Forklift, Electric Pallet Truck, Electric Pallet Stacker, Electric Towing Tugger and various customized lift, forklift, Electric Pallet truck, electric Golf car.
Starting Aerial Working Platform and Materials Handling equipment businesses in 2014, we had accumulated rich experience and a strong R&D team to offer the most popular Aerial working platform for both domestic and international market, we already sold our Scissor lift, Forklift, Pallet Truck to more than 50 different country, Such As, Russia, Poland, America, Brazil, Argentina, Chile, Turkey, France, UK, Germany, South Africa, Thailand, Vietnam, Malaysia and so on.
As a experienced company in material handling equipment, we have a lot of customers all around the world. Our products has been sold to over 60 countries and markets and share a good reputation.
Our mission is to provide high quality tools with perfact service, then make the material handling become easy and efficient.

  • CE-Certificate-for-pallet-truck.jpg
  • CE-Certificate-for-Forklift.jpg
  • CE-Certificate-for-Aerial-working-platform.jpg
  • CE-Certificate-for-Aerial-working-lift.jpg

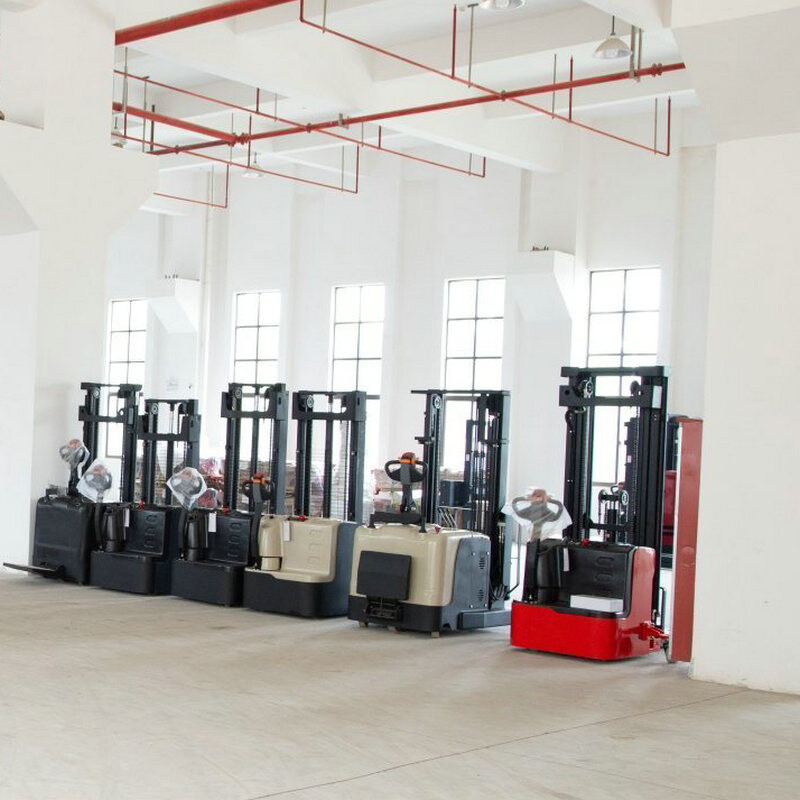

WORKSHOP
